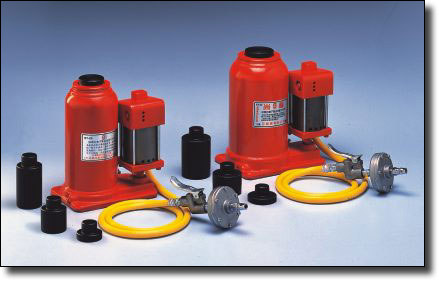

Hydraulic Cylinder with Air Pumps



Carbon steel base with automatic welding makes stable quality.
Chrome plated plunger with self-return resists corrosion and extends life.
Fast motion by air pump design makes high efficiency.
Saddle set included on all models.

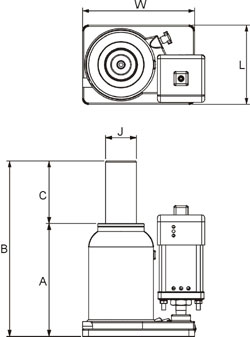

Specifications：
Cylinder Capacity
(tons)		 Stroke
(mm)		 Model Number Call Height
(mm)		 Exit Height
(mm)		 Plunger Dia.
(mm)		 Base Dimensions (mm) Auxliary Height (mm). Weight
(kg)		 Air Pressure Raing (kgf / cm2)
20 150 ST-20A 235 385 50 128 * 181 10.45.80 16.0 8-12
125 ST-20B 210 335 50 128 * 181 10.45.80 15.0 8-12
100 ST-20C 185 285 50 128 * 181 10.45.80 14.0 8-12
30 145 ST-30A 235 380 60 142 * 197 10.45.80 22.0 8-12
120 ST-30B 210 330 60 142 * 197 10.45.80 21.0 8-12
