Double-Acting Cylinders


Acting up and down by oil pressure, allows for both pull and push forces to satisfy user's need.
Quickly acting fits long stroke or high tonnage requirement.
Special specification commission is available.
SQB-3/8UF couplers included on all models.



Specifications¡G
Model
Number		 Cylinder
Capacity
(tons)		 Stroke
(in)		 Max. Cylinder
Capacity
(tons)		 Cylinder
Effective
Area
(in2)		 Oil
Capacity
(in3)		 Weight
(lbs)
Advance Retract Advance Retract Advance Retract
SRR-1010 10 10.00 11.00 4.00 2.23 0.80 22.33 8.00 28.00
SRR-1012 12.00 11.00 4.00 2.23 0.80 26.80 9.00 31.00
SRR-308 30 8.25 32.00 15.00 6.51 3.00 53.67 25.00 40.00
SRR-3014 14.50 32.00 15.00 6.51 3.00 92.70 43.00 64.00
SRR-506 50 6.13 55.00 17.00 11.06 3.40 67.77 21.00 67.00
SRR-5013 13.13 55.00 17.00 11.06 3.40 145.17 44.00 115.00
SRR-5020 20.13 55.00 17.00 11.06 3.40 222.56 68.00 150.00
SRR-756 75 6.13 80.00 24.00 15.92 4.90 97.58 29.00 92.00
SRR-7513 13.13 80.00 24.00 15.92 4.90 209.00 64.00 150.00
SRR-1006
 100 6.63 103.00 48.00 20.65 9.60 136.93 63.00 135.00
SRR-10013
 13.13 103.00 48.00 20.65 9.60 271.17 126.00 205.00
SRR-10018
 18.13 103.00 48.00 20.65 9.60 374.44 174.00 260.00
SRR-1502
 150 2.25 153.00 74.00 30.71 14.80 69.11 33.00 110.00
SRR-1506 6.13 153.00 74.00 30.71 14.80 188.28 91.00 205.00
SRR-15013
 13.13 153.00 74.00 30.71 14.80 403.27 194.00 275.00
SRR-15032
 32.13 153.00 74.00 30.71 14.80 986.84 475.00 525.00
SRR-2006
 200 6.00 221.00 113.00 44.21 22.50 265.28 135.00 325.00
SRR-20013 13.00 221.00 113.00 44.21 22.50 574.75 293.00 440.00
SRR-3006 300 6.00 354.00 188.00 70.93 38.00 425.56 228.00 441.00

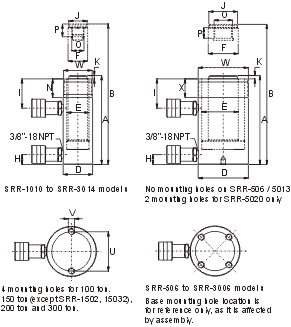

Specifications¡G
Model
Number		 Collapsed
Height
A(in)
 Extended
Height
B(in)		 Out.
Dia.
D(in)
 Cyl.
Bore
Dia.
E(in)		 Plgr.
Dia.
F(in)		 Cyl.Base
to Adv.
Port
H(in)		 Cyl. Top
to Return
Port
I(in)		 Saddle
Dia.
J(in)		 Saddle
Protr.
Fr. Plgr.
K(in)
SRR-1010 16.13 26.13 2.88 1.69 1.38 1.44 2.25 1.38 0.24
SRR-1012 18.00 30.00 2.88 1.69 1.38 1.44 2.25 1.38 0.24
SRR-308 15.25 23.50 4.00 2.88 2.13 1.44 3.19 2.00 0.41
SRR-3014 21.63 36.13 4.00 2.88 2.13 1.56 3.19 2.00 0.41
SRR-506 13.06 19.19 5.00 3.75 3.13 1.13 3.00 2.81 0.11
SRR-5013 20.06 33.19 5.00 3.75 3.13 1.13 3.00 2.81 0.11
SRR-5020 28.88 49.00 5.00 3.75 3.13 2.25 3.00 2.81 0.11
SRR-756 13.69 19.81 5.75 4.50 3.75 1.19 3.00 2.81 0.25
SRR-7513 20.69 33.81 5.75 4.50 3.75 1.19 3.19 2.81 0.25
SRR-1006
 14.06 20.69 7.00 5.13 3.75 1.50 2.81 3.00 0.13
SRR-10013
 20.03 33.75 7.00 5.13 3.75 1.50 2.81 3.00 0.13
SRR-10018
 27.06 45.19 7.00 5.13 3.75 1.63 3.63 3.00 0.13
SRR-1502
 7.72 9.96 8.00 6.25 4.50 0.88 2.63 4.49 0.75
SRR-1506 15.19 21.31 8.00 6.25 4.50 1.94 3.31 4.49 0.75
SRR-15013
 22.20 35.31 8.00 6.25 4.50 1.94 3.31 4.49 0.75
SRR-15032
 43.94 76.06 8.00 6.25 4.50 3.00 3.50 4.49 0.75
SRR-2006
 16.94 22.94 9.75 7.50 5.25 2.25 3.81 5.25 0.88
SRR-20013 23.94 36.94 9.75 7.50 5.25 2.25 3.81 5.25 0.88
SRR-3006 19.13 25.13 12.75 9.50 6.50 3.50 4.50 6.50 1.13

Specifications¡G
Model
Number		 Plunger
Internal
Thread
O(in)		 Plunger
Thread
Length
P(in)		 Collar
Thread
W(in)		 Collar
Thread
Length
X(in)		 Base Mounting Holes Dimersions
Bolt
Circle
U(in)		 Thread
V(in)
 Thread
Depth
Z(in)
SRR-1010 1-8 1.00 21/4-14 1.06 - - -
SRR-1012 1-8 1.00 21/4-14 1.06 - - -
SRR-308 11/2-16 1.00 35/16-12 1.94 - - -
SRR-3014 11/2-16 1.00 35/16-12 1.94 - - -
SRR-506 1-12 1.00 5-12 2.00 - - -
SRR-5013 1-12 1.00 5-12 2.00 - - -
SRR-5020 1-12 1.00 5-12 2.00 - - -
SRR-756 1-12 1.50 53/4-12 1.50 - - -
SRR-7513 1-12 1.50 53/4-12 1.50 - - -
SRR-1006
 13/4-15 1.38 67/8-12 2.00 5.50 3/4-10 1.00
SRR-10013
 13/4-15 1.38 67/8-12 2.00 5.50 3/4-10 1.00
SRR-10018
 13/4-15 1.38 67/8-12 2.00 5.50 3/4-10 1.00
SRR-1502
 - - - - - - -
SRR-1506 33/8-16 1.38 8-12 2.36 6.25 3/4-16 1.00
SRR-15013
 33/8-16 1.38 8-12 2.36 6.25 3/4-16 1.00
SRR-15032
 33/8-16 1.38 8-12 2.36 - - -
SRR-2006
 - - - - 5.00 1-8 1.00
SRR-20013 21/2-12 2.50 93/4-12 2.13 5.00 1-8 1.00
SRR-3006 21/2-12 3.25 121/4-12 2.31 6.25 11/4-7 1.75
