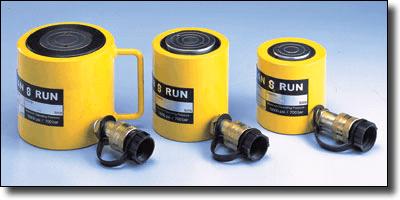

| Single-Acting, Low Height Cylinders |
 |
Compact
design for use where other cylinder will Not fit, but need more stroke
than SRSM-series. |
|
Single acting, spring return. |
|
Surface coating resists corrosion. |
|
Chrome plated plunger resists wear and rust and exteding life. |
|
SQB-3/8UF couplers and dust caps included on all models. |
| Specifications¡G |
Model
Number |
Cylinder
Capacity
(tons) |
Stroke
(in) |
Cylinder
Effective
Area
(in2) |
Oil
Capacity
(in3) |
Weight
(lbs) |
Collapsed
Height
A(in) |
Extended
Height
B(in) |
Outside
Dia.
D(in) |
| SRCS-101 |
10 |
1.50 |
2.23 |
3.35 |
9.0 |
3.47 |
4.97 |
2.75 |
| SRCS-201 |
20 |
1.75 |
4.44 |
7.77 |
11.0 |
3.88 |
5.63 |
3.63 |
| SRCS-302 |
30 |
2.44 |
6.50 |
15.85 |
15.0 |
4.63 |
7.06 |
4.00 |
| SRCS-502 |
50 |
2.38 |
9.63 |
22.91 |
24.0 |
4.81 |
7.19 |
4.88 |
| SRCS-1002 |
100 |
2.25 |
19.68 |
44.25 |
50.0 |
5.56 |
7.81 |
6.50 |
|
| Specifications¡G |
Model
Number |
Cylinder
Bore Dia.
E(in) |
Plunger
Dia.
F(in) |
Base To
Adv. Port
H(in) |
Plunger
Protrusion
from Base
K(in)
|
Thread
O(mm) |
Thread
Depth
P(in) |
Bolt
Circle
U(in)
|
| SRCS-101 |
1.69 |
1.50 |
0.69 |
0.20 |
M4 |
0.32 |
1.03 |
| SRCS-201 |
2.38 |
2.00 |
0.69 |
0.12 |
M5 |
0.32 |
1.56 |
| SRCS-302 |
2.88 |
2.62 |
0.75 |
0.12 |
M5 |
0.32 |
1.56 |
| SRCS-502 |
3.50 |
2.75 |
0.94 |
0.08 |
M5 |
0.32 |
1.56 |
| SRCS-1002 |
5.00 |
3.63 |
1.25 |
0.06 |
M8 |
0.40 |
2.19 |
|
