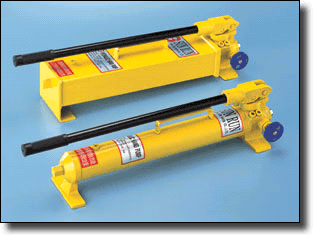

| Hand Pump |
 |
Internal pressure relief valve for overload protection. |
|
Large oil capacity, suitable for wide application. |
|
Two speed auto-switch reduces manpower and increase efficiency. |
|
To join value to control Double-Acting Cylinders. |
| Specifications¡G |
| Model
Number |
Pump
Type |
Usable
Oil
Capacity
(c.c.) |
Pressure
Rating
(psi) |
Oil
Displacement
per Stroke
(in3) |
Weight
(kg) |
| 1st stage |
2ld stage |
1st stage |
2ld stage |
| SPH-900 |
Single-Speed |
900 |
N / A |
10.000 |
N / A |
2.8 |
8.5 |
| SPH-1200 |
Two-Speed |
1200 |
200 |
10.000 |
15.5 |
2.8 |
9.0 |
| SPH-2000 |
2000 |
200 |
10.000 |
15.5 |
2.8 |
11.0 |
| SPH-3000 |
3000 |
200 |
10.000 |
15.5 |
2.8 |
13.0 |
|

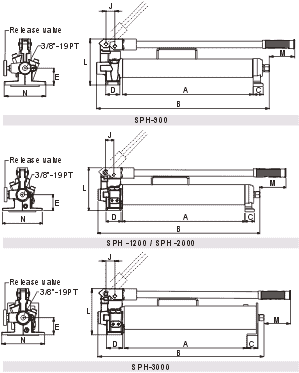

| Specifications¡G |
| Model Number |
Dimensions(mn) |
| A |
B |
C |
D |
E |
J |
L |
M |
N |
| SPH-900 |
380 |
450 |
32.5 |
45 |
55 |
29 |
145 |
6 |
136 |
| SPH-1200 |
425 |
536 |
32.5 |
48 |
55 |
29 |
142 |
65 |
137 |
| SPH-2000 |
425 |
536 |
32.5 |
48 |
55 |
29 |
142 |
65 |
137 |
| SPH-3000 |
440 |
536 |
45 |
48 |
55 |
29 |
142 |
65 |
137 |
|
