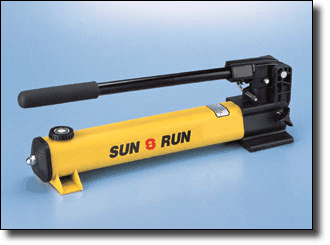

| Light Weight Hand Pump, Two-speed, Imperial Dimension |
 |
Two speed auto-switch and big oil capacity reduce manpower and increase efficiency. |
|
Wild range application, safety valve prevent overload. |
|
Light weight with plactic-steel oil tank and durable with aluminum design on SP-392. |
|
Integral 4-way valve on SP-84 for operation of double acting cylinders. |
| Specifications¡G |
| Model Number |
Pump
Type |
Usable Oil
Capacity
(in3) |
Pressure Rating
(psi) |
Oil Displacement
per Stroke
(in3) |
Max.
Handle
Effort
(bs) |
Piston
Stroke
(in) |
Weight
(lbs) |
| 1st stage |
2ld stage |
1st stage |
2ld stage |
| SP-392 |
Two.
Speed |
55 |
200 |
10.000 |
0.687 |
0.151 |
93 |
1.00 |
9 |
| SP-80 |
134 |
350 |
10.000 |
0.99 |
0.15 |
104 |
1.00 |
24 |
| SP-801 |
249 |
350 |
10.000 |
0.99 |
0.15 |
104 |
1.00 |
31 |
| SP-84 |
134 |
350 |
10.000 |
0.99 |
0.15 |
104 |
1.00 |
29 |
| SP-462 |
453 |
200 |
10.000 |
7.69 |
0.29 |
110 |
1.50 |
61 |
| SP-464 |
453 |
200 |
10.000 |
7.69 |
0.29 |
110 |
1.50 |
61 |
|

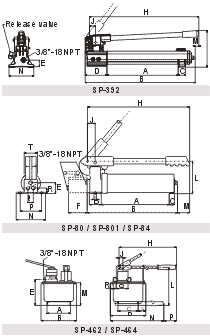

| Specifications¡G |
| Model
Number |
Dimensions(in) |
| A |
B |
C |
D |
E |
F |
H |
J |
| SP-392 |
13.56 |
21.00 |
1.44 |
3.93 |
1.31 |
- |
20.56 |
1.19 |
| SP-80 |
16.75 |
21.22 |
1.00 |
1.75 |
2.13 |
- |
20.75 |
1.14 |
| SP-801 |
29.94 |
30.78 |
1.00 |
1.75 |
2.13 |
- |
30.43 |
1.14 |
| SP-84 |
16.75 |
21.22 |
1.00 |
1.75 |
- |
2.52 |
20.75 |
1.14 |
| SP-462 |
8.25 |
12.13 |
6.42 |
12.63 |
7.68 |
- |
26.44 |
0.98 |
| SP-464 |
8.35 |
12.13 |
6.42 |
12.63 |
7.68 |
- |
26.44 |
0.98 |
|
| Specifications¡G |
| Model
Number |
Dimensions(in) |
| L |
M |
N |
P |
Q |
R |
S |
T |
| SP-392 |
7.00 |
0.63 |
4.75 |
- |
- |
- |
- |
- |
| SP-80 |
6.88 |
0.75 |
5.75 |
4.76 |
- |
0.83 |
0.31 |
- |
| SP-801 |
6.88 |
- |
5.75 |
4.76 |
- |
0.83 |
0.31 |
- |
| SP-84 |
6.88 |
0.75 |
5.75 |
4.76 |
1.50 |
1.69 |
0.31 |
2.64 |
| SP-462 |
10.63 |
6.89 |
25.60 |
3.63 |
- |
- |
3.13 |
- |
| SP-464 |
10.63 |
6.89 |
25.60 |
3.63 |
3.50 |
2.68 |
3.13 |
- |
|
